QY Model Insulating Overhead Crane with Hook is applicable to workshop where smelting electrolytic nonferrous metal material, such as electrolytic aluminum and electrolytic magnesium, etc.

The crane is composed of box bridge, r traveling mechanism, trolley and electrical device. Several insulating apparatus are mounted at proper parts of the crane to prevent the electric current of the energized equipment transmitting to the crane through the lifting hook during operation, which will endanger the driver''''''''''''''''s life and the safety of the equipments.

The crane is heavy-duty. Dual actuator is equipped with the main lifting mechanism for the purpose of safty hoisting.

All mechanisms shall be operated in the cab.

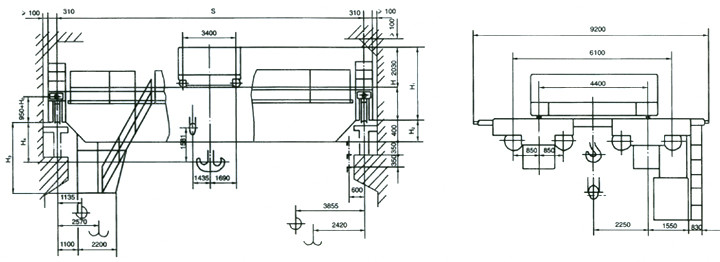

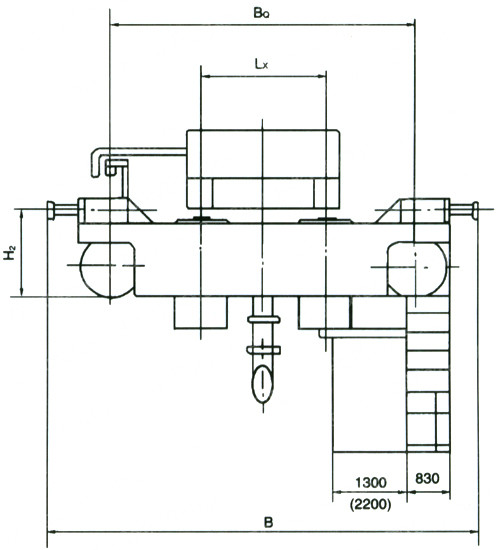

Sketch:



(5~10t)

(16/3.2~20/5t)
